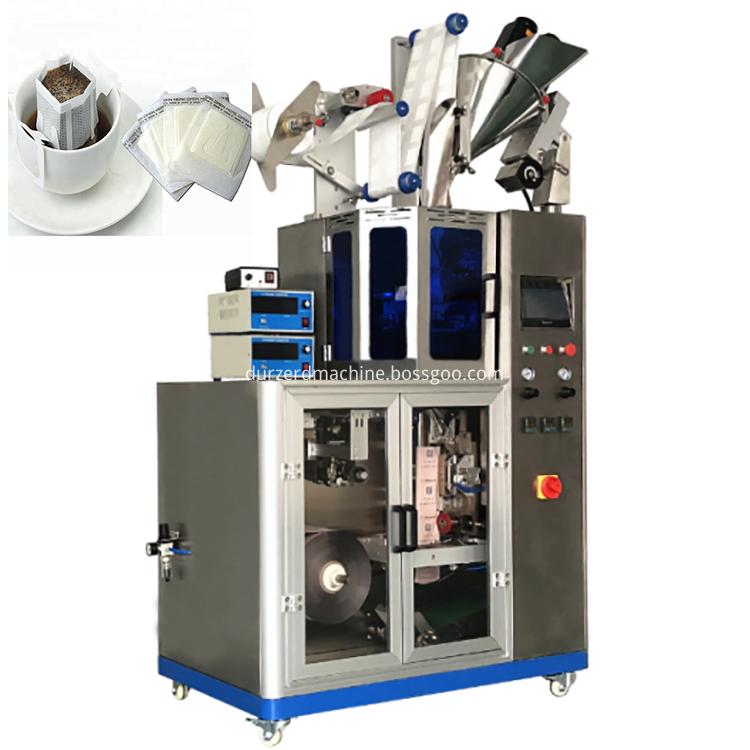

Auto Drip Coffee Packaging Machine

Auto Drip Coffee Packaging Machine

    Min. Order: 1 Set/Sets
    Packaging: Wooden case
    Brand: Durzerd
    Transportation: Ocean
    Place of Origin: china
    Port: SHANGHAI

Product Description

Application:

The standard drip coffee packing machine adopts the fully ultrasonic sealing, it can be widely applied to non woven coffee bag packing and rectangular nylon Tea Bag Packing Machine as well. This equipment is usually combined with Sachets Cartoning Machine to form an automated production line. Realize the tea raw materials weighing, packaging, bag making, sealing, packing into outer bag and cartoning.

Advantages:

1. Screw feeder, screw feeder, No stuck, high accuracy reaches ±0.2grams, easy to adjust.

2. 3-side sealing bag, makes better packaging performance, more airtight sealing.

3. Imported MITSUBISHI PLC, with WEINVIEW touch screen, simple operation.

4. Equips with safety guard door,better protecting of machine, to provide the safety Precautions for the workers as well.

5. With special design of outer air blowing system, effectively avoid the problem of wrinkle”.

6. Wide applications, such as drip coffee bag, non woven coffee bag and flat nylon tea bag.

Coffee Powder Packing Machine details:

Drip Coffee Bag Packaging Machine Png


drip bag packaging

Specifications:

Model

ZD-181

Working capacity

Stable 40 bags/min

Filling system

Auger filler

Filling range

8~12gr/bag

Envelope type

Three sides sealing

Recommend size

Inner W74*L90mm,Outer W100*L120mm.

Sealing method

Ultrasonic sealing for inner and heat sealing for outer

Packing material

Non-woven,Nylon, PLA, all ultrasonic sealing materials

Type

Fully automatic and Pneumatic driven

Air consumption

0.6MPa,0.35m³/min ( Air compressor to be prepared by client )

Voltage and Power

Single phase, 220V, 50/60Hz, 2.2Kw

Gross Weight

570kg

Dimensions

L1380*W870*H2220mm


Configuration List:

No.

Item

Brand

Model

Qty

Remark

1

PLC

Mitsubishi(Japan)

FX3GA-24MT-CM

1SET

2

Feeding Motor

ZHONGDA

3RK15GN-C

1SET

3

Temperature Controller

WINPARK

CHB401

3SETS

4

Steeping Motor

LEADSHINE

86HS45D-M

1SET

5

HMI

WEINVIEW

(Taiwan)

TK6070IQ

1SET

6

Switching Mode

Power Supply

MIBBO(Taiwan)

MPS-150W48NIS

2SETS

7

Solid State Relay

China

HHG1-1/032F-38

8

Cylinder

AIRTAC(Taiwan)

TN20X30S-CD1200A

6SETS

9

Electromagnetic valve

AIRTAC(Taiwan)

4V210-08

1SET

10

Date Printer

China

HP-241

1SET
